Product Introduction
The metallurgical ore powder briquetting machine integrates machine, electricity, liquid and gas to realize automatic feeding, pressing, demoulding, and automatic block production. The double-sided press molding is realized through the floating of the mold frame, so that the density of the formed cake is uniform. To improve the appearance quality of demoulding products, the hydraulic system adopts a combination of superimposed valve blocks to achieve continuous full-load work without failure; the forming limit switch is adjusted according to technical parameters to achieve stable and adjustable dimensions of the molded product; the water cooling device is assembled to avoid The oil temperature is too high; the PLC man-machine interface control system is adopted to realize the fully automatic operation of the equipment.
working principle
The metallurgical ore powder briquetting machine consists of three parts: the main engine, the hydraulic pump and the electrical console.
The metallurgical ore powder briquetting machine uses the working principle of hydraulic cylinder expansion and contraction to achieve pressing. When the equipment is working, the rotation of the motor drives the hydraulic pump to work, and the hydraulic oil in the oil tank is delivered to the hydraulic cylinder through the oil pipe. The hydraulic valve can control the hydraulic pressure. The oil is delivered to different cavities of the oil cylinder, and the movement of the piston rod of the oil cylinder causes the powder to be pressed and formed in the mold.
Applicable materials

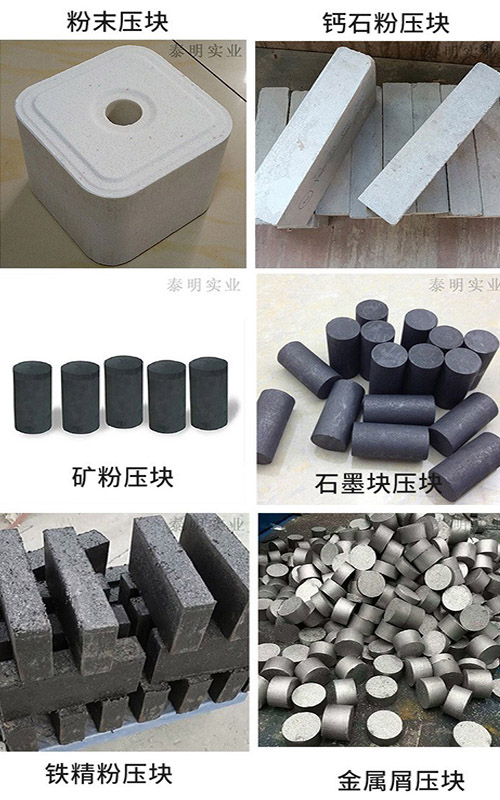

Finished product display
Technical Parameters
| serial number | name | unit | 400 | 500 |
| 1 | Master cylinder nominal force | KN | 4000 | 5000 |
| Nominal Force of Quick Cylinder | KN | 100*2 | 100*2 | |
| Nominal force | KN | 800 | 800 | |
| 2 | System pressure | Mpa | 31.5 | 31.5 |
| 3 | Master cylinder stroke | mm | 300 | 300 |
| Fast cylinder stroke | mm | 320 | 320 | |
| Top cylinder stroke | mm | 150 | 150 | |
| 4 | Feeding height | mm | 60 | 60 |
| 5 | opening height | mm | 700 | 700 |
| 6 | Effective size of workbench | mm | 700*800 | 700*800 |
| 7 | Motor total power | KW | 30 | 37 |
| 8 | Fuel tank capacity | L | 800 | 900 |
| 9 | Forming size | mm | Φ110-200 | Φ120-200 |
| 10 | molding quantity | indivual | 1 | 1 |
| 11 | Forming speed | times/minute | 4-5 | 4-5 |
The above is the detailed technical parameter table of 400 tons and 500 tons powder briquetting machine, in which the molding size is determined according to your requirements, and we will give reasonable advice on which one to choose; if you want to press blocks of other shapes and sizes, We can also provide equipment customization, the specific data is subject to the actual situation.
user site
