Product Introduction
Coking coal coke powder briquetting machine integrates machine, electricity, hydraulic and gas to realize automatic feeding, pressing, demoulding, and automatic block production. The double-sided pressure forming is realized through the floating of the mold frame, so that the density of the formed cake is uniform. To improve the appearance quality of demoulding products, the hydraulic system adopts a combination of superimposed valve blocks to achieve continuous full-load work without failure; the forming limit switch is adjusted according to technical parameters to achieve stable and adjustable dimensions of the molded product; the water cooling device is assembled to avoid The oil temperature is too high; the PLC man-machine interface control system is adopted to realize the fully automatic operation of the equipment.
working principle
The coking coal coke powder briquetting machine equipment consists of three parts: the main engine, hydraulic pump and electrical console.
The briquetting machine uses the working principle of hydraulic cylinder expansion and contraction to achieve pressing. When the equipment is working, the rotation of the motor drives the hydraulic pump to work, and the hydraulic oil in the oil tank is delivered to the hydraulic cylinder through the oil pipe. The hydraulic valve can control the hydraulic oil to be delivered to the hydraulic cylinder. In different cavities of the oil cylinder, the movement of the piston rod of the oil cylinder causes the powder to be pressed and formed in the mold.

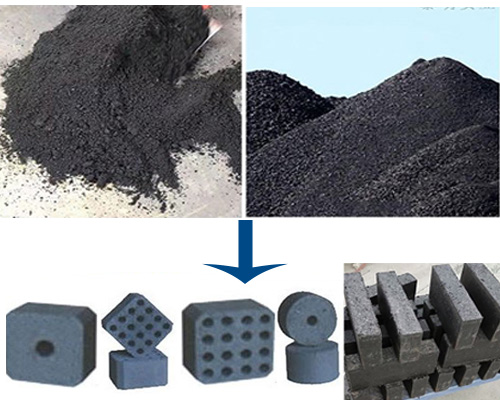

Applicable materials and finished products
Technical Parameters
| model | engineering pressureforce | power | Yield |
| 200 | 2000 | 15 | 15-20 |
| 300 | 3000 | 22 | 15-20 |
| 500 | 5000 | 30 | 15-20 |
The above detailed technical parameter table is for your reference, which can be determined in combination with the required shape and molding size. We can also provide equipment customization, and the specific data is subject to the actual situation.

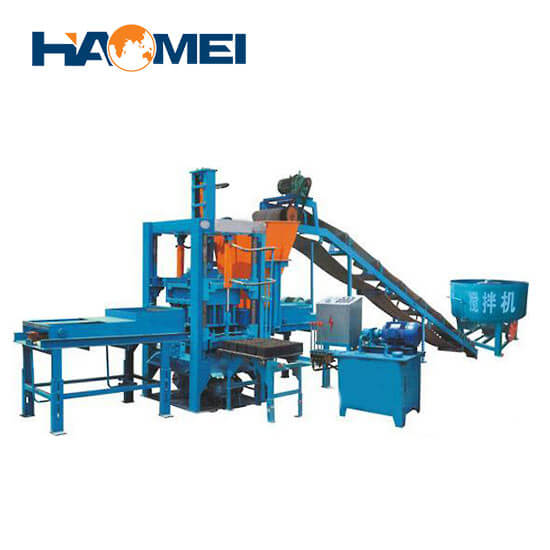

user site
