Product Introduction

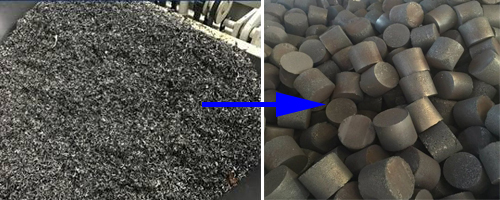

The steel shavings briquetting machine can press various steel shavings or wrought iron shavings into high-density cylindrical cakes (weight 2-8 kg) without adding any binder, and the cake density can reach more than 5T/M3 (The raw materials are different, and the density and weight of the extruded cakes are not the same), and the pressed cakes can be directly put into the furnace for use. Due to the special shape of steel shavings, it occupies a large area, which causes great inconvenience for stacking and transportation. The blocks produced by the baler are too loose, and the steel shavings briquetting machine can perfectly solve the above problems. .
working principle
The frame part of the steel shavings briquetting machine is made of integral steel castings, which prevents the cracking of the welded parts of the steel plate, and improves the reliability, stability and service life of the equipment. Using advanced hydraulic transmission technology and superimposed combination valve block, using excellent wear-resistant oil seal, the oil cylinder is processed and assembled by domestic new high-tech technology, so as to ensure continuous operation without weakening the pressure of the oil cylinder, durable and stable operation; computer control, high degree of automation, Low failure rate, easy maintenance, etc.
Applicable materials
Technical Parameters
| model | pie rulerInch | Cake density | block weight | shift production | power |
| 200 | Φ80-100 | 4.0-5.2 | 2-3 | 4-6 | 15 |
| 315 | Φ100-120 | 4.2-5.5 | 2-4 | 8-10 | 30 |
| 400 | Φ110-140 | 4.2-5.5 | 3-5 | 10-12 | 30 |
| 500 | Φ120-150 | 4.5-5.5 | 5-8 | 16-20 | 37 |
| 630 | Φ130-160 | 4.6-5.5 | 6-9 | 20-30 | 60 |
The above is the detailed technical parameter table of the steel chip briquetting machine, in which the molding size is determined according to your requirements, and we will give reasonable suggestions for which one to choose; if you want to press blocks of other shapes and sizes, we can also provide The equipment is customized, and the specific data is subject to the actual situation.
Application field
The steel slag cake machine is mainly used for various steel pins, metal chips, steel slag, scrap steel, particle steel and other metal raw materials, which are directly pressed into cylindrical cakes with a diameter of 80-300mm by high pressure, and the finished product will not fall from a high place without breaking. , Dropping, can improve the utilization rate of waste steel shaving raw materials, reduce the cost of recycling and processing.
user site
