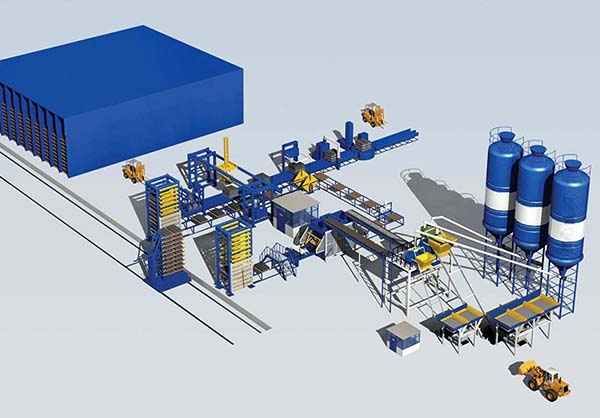

Fully automatic brick machine equipment workflow:
Fully automatic brick machine equipment relies on hydraulic power. Through simple touch screen operation, the production automation and intelligence of fully automatic brick machine equipment can be realized. The quality of brick machine equipment determines production efficiency. If inferior brick machine equipment is selected, the wear resistance is relatively poor. It needs to be replaced frequently, which not only delays the construction period, but also increases the production cost for the enterprise. Fully automatic brick machine equipment realizes fully automatic production, which greatly reduces the use of labor and improves work efficiency. The workflow of fully automatic non-burning brick machine equipment is closely connected:
1. The loader pours various raw materials for unburned bricks into the batching machine.
2. The formula is set by the computer, and the ingredients are automatically prepared.
3. The prepared raw materials are unloaded into the lifting bucket of the forced mixer of the automatic brick machine equipment.
4. Raise the hopper to the top.
5. Automatically pour the raw materials into the forced mixer.
6. Stir for a while, add an appropriate amount of water, stir well and put it into the storage hopper.
7. Transport the stirred raw materials to the hopper of the main machine of the automatic brick machine equipment.
8. Open the hopper and discharge the material into the distribution machine.
9. After the mold of the automatic brick machine equipment is reset, the cloth machine moves forward, and the cloth is forced into the mold box.
10. The cloth machine returns, and the pressure head is pressed down with vibration.
11. The lower mold rises until all the bricks are exposed.
12. Push the plate forward, and the adobe enters the automatic brick machine equipment and exits the plate machine.
13. The board machine automatically runs to the automatic palletizer.
14. The automatic palletizing machine runs automatically, and automatically stacks the entire brick adobe for 4-5 layers.
15. The automatic brick machine equipment is transported to the drying area by a forklift truck, and after solidification, it is stacked and rested.
