Product Introduction

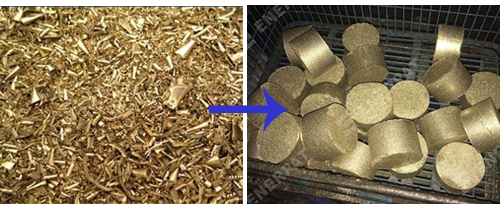

The copper chip briquetting machine is mainly used to directly cold-press the raw materials of copper sawdust and copper car chips into 3-10 kg cylindrical cakes through high pressure. The whole process does not need heating, additives, or other processes to facilitate storage and transportation. And reduce the loss in the process of recycling.
working principle
The copper shavings briquetting machine consists of three parts: host machine, hydraulic pump and electrical console.
The briquetting machine uses the working principle of hydraulic cylinder expansion and contraction to achieve pressing. When the equipment is working, the rotation of the motor drives the hydraulic pump to work, and the hydraulic oil in the oil tank is delivered to the hydraulic cylinder through the oil pipe. The hydraulic valve can control the hydraulic oil to be delivered to the hydraulic cylinder. In different cavities of the oil cylinder, the movement of the piston rod of the oil cylinder causes the powder to be pressed and formed in the mold.
Applicable materials
Technical Parameters
| model | pie rulerInch | Cake density | block weight | shift production | power |
| 200 | Φ80-100 | 4.0-5.2 | 2-3 | 4-6 | 15 |
| 315 | Φ100-120 | 4.2-5.5 | 2-4 | 8-10 | 30 |
| 400 | Φ110-140 | 4.2-5.5 | 3-5 | 10-12 | 30 |
| 500 | Φ120-150 | 4.5-5.5 | 5-8 | 16-20 | 37 |
| 630 | Φ130-160 | 4.6-5.5 | 6-9 | 20-30 | 60 |
The above is the detailed technical parameter table of the copper shavings briquetting machine. The forming size is determined according to your requirements. We will give reasonable suggestions for which one to choose; if you want to press blocks of other shapes and sizes, we can also provide them. The equipment is customized, and the specific data is subject to the actual situation.
Application field
The copper shavings briquetting machine is mainly suitable for foundry-related enterprises such as copper plate and profile factories, copper pipe factories, copper casting factories, auto parts, and hardware.
user site
