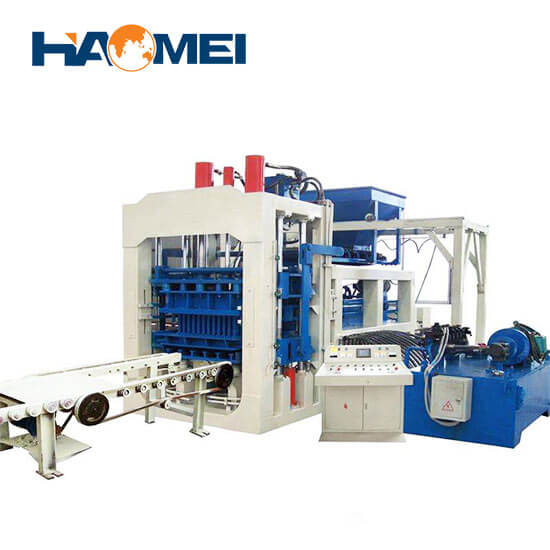

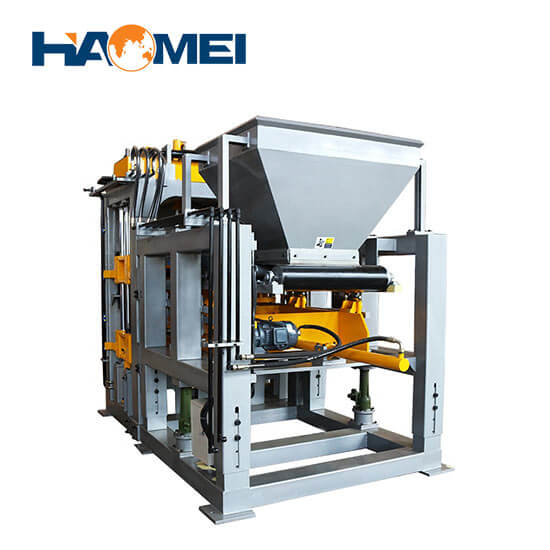

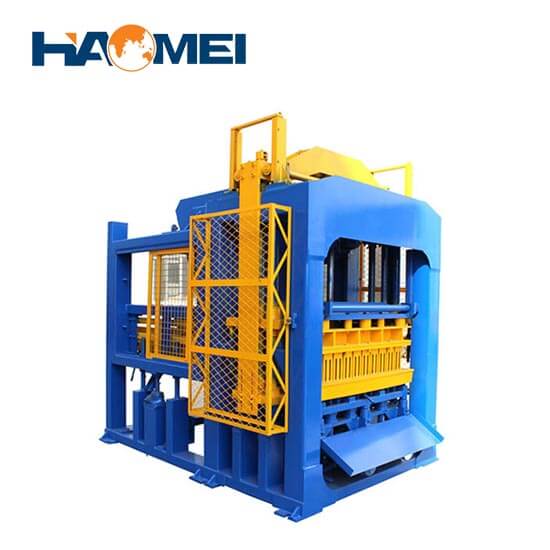

Fully automatic static pressure brick machine:
The static pressure brick machine adopts hydraulic transmission; it adopts a four-column guide structure, and the positioning is accurate; the machine can not only produce standard bricks and bread bricks, but also produce hydraulic bricks, water conservancy slope protection bricks, etc.
Raw materials for static brick machine
Static brick machine uses fly ash, coal cinder, coal gangue, tailings slag or natural sand, sea mud, etc. (one or several of the above raw materials) as the main raw materials, and is a wall material manufactured without high-temperature calcination.
Main technical parameters of automatic static pressure brick machine:
| model | 500T | 630T | 850t | 1100T | 1300T |
| Nominal pressure | 5000KN | 6300KN | 8500KN | 11000KN | 13000KN |
| Molding cycle | 15-20s | 15-20s | 15-20s | 15-20s | 15-20s |
| Equipped with power | 55kw | 62kw | Sahko | 100kw | 110kw |
| Number of forming blocks/mode | 16 pieces | 20 yuan | 24 pieces | 36 pieces | 48 pieces |
| Remarks: The mold can be customized according to the needs of users; the size of the brick is different, the molding cycle and output are different. | |||||
The use of static brick machine
The static brick press is mainly used for the production of non-burning bricks and hollow bricks with fly ash, river sand, sea sand, mountain sand, mineral powder, slag, etc. as the main raw materials.

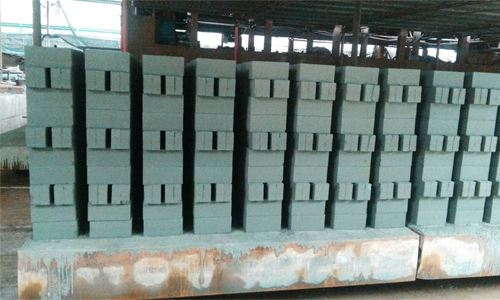

On-site pictures:
